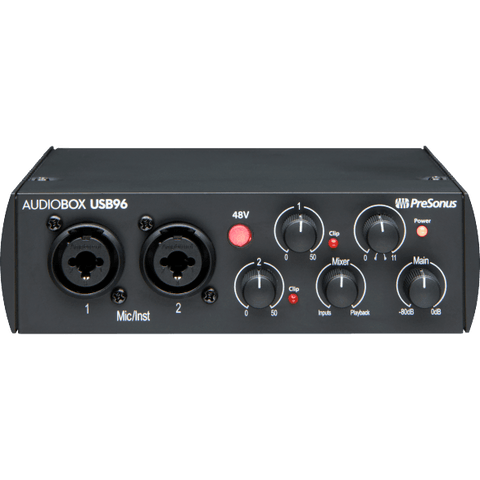

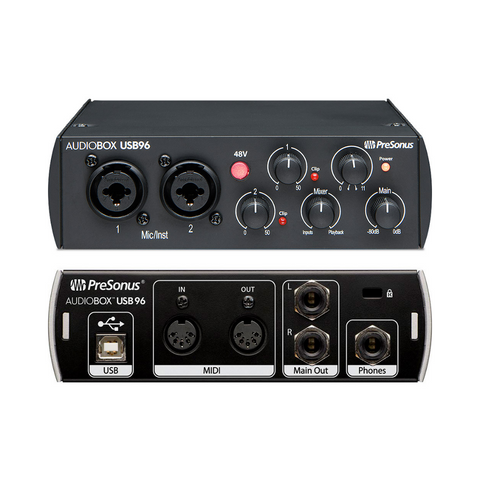

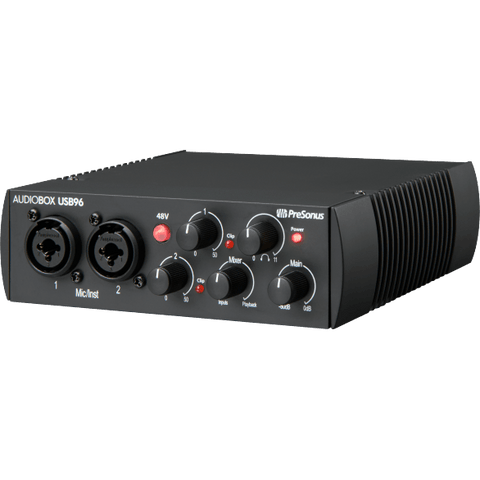

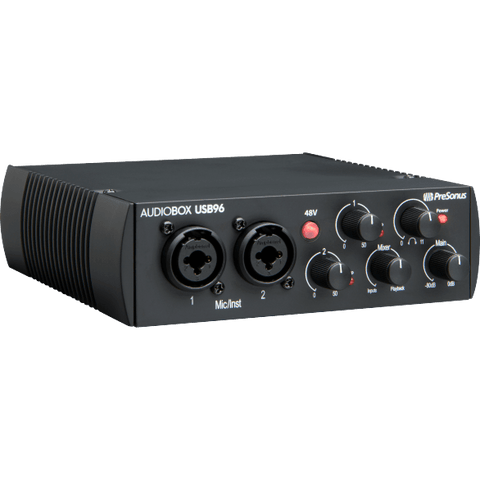

PreSonus AudioBox USB 96 Audio Interface - 25th Anniversary Edition
The AudioBox USB® 96 audio interface has just the right features you need to start recording right away. Bus-powered and built to travel, the AudioBox USB 96 makes recording easy.

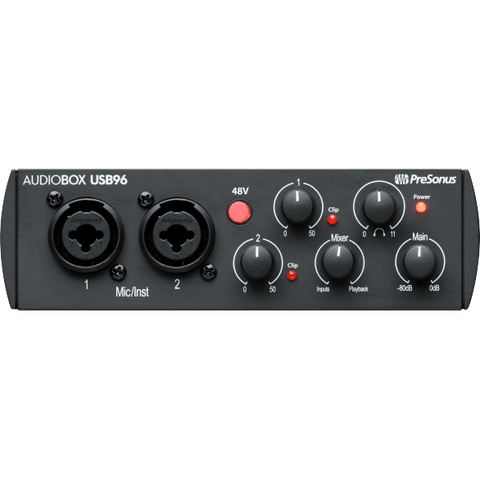

Two front-panel combo mic/instrument inputs, two balanced line-level outputs, an ultra-loud headphone out, and MIDI I/O make the AudioBox USB 96 an affordable stereo-recording solution for singer/songwriters, podcasters, guitar or guitar-bass collaborations and more. A Mix control lets you balance the level between the input signal and computer playback without any latency.
The AudioBox USB 96 is built to be used on the go with a heavy-duty steel chassis to stand up to the rigors of mobile recording. It's USB class-compliant - no special drivers to install - and natively compatible with Apple Silicon-based Macs and iOS and iPadOS devices. A screaming-loud headphone output ensures you can hear your music clearly, even in noisy locations.
Compatible with virtually all macOS, Windows, iOS and iPadOS audio-recording software, the AudioBox USB 96 comes with a license for PreSonus®' Studio One® Artist and Studio Magic Suite bundle for a complete recording solution so you can get recording right away.
Whether you're just getting into recording or are a veteran producer who wants to go mobile, the AudioBox USB 96 audio interface is ready to hit the road when you are.
Features
- Simple, affordable stereo-recording solution for singer/songwriters, podcasters, guitar or guitar-bass collaborations and more
- Professional-quality mic preamps: Your microphone will sound its best thanks to this low-noise, high-headroom design with +35 dBu of adjustable gain and switchable +48V phantom power for professional XLR condenser mics
- Recording software included: Get started right away with PreSonus® Studio One® Artist recording software and Studio Magic Suite software bundle
- Bus-powered by your connected USB device so no need for an additional power supply
- 2 combo mic/instrument inputs with high-quality mic preamplifiers: Connect mics, guitars and basses
- One loud, clear ¼-inch stereo headphone output
- Mix control lets you create a custom blend between inputs and playback for monitoring recordings with zero latency

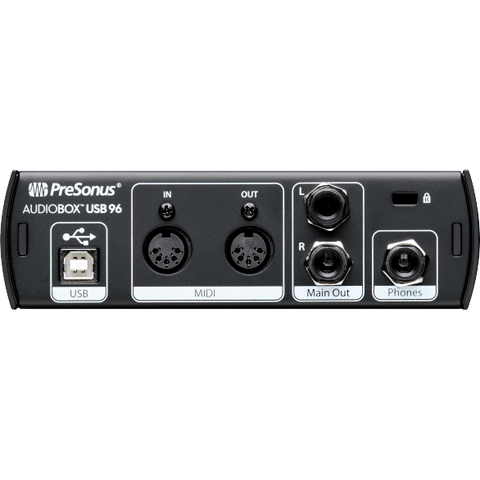

- Two balanced TRS ¼-inch main outputs for studio monitors or other speakers
- Professional audio quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible
- USB 2.0-compatible
-
VoltageUSB Bus Powered
-
InputsTwo - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)
-
Headphone Jack1/4" TRS Active Stereo
-
Line OutTwo - 1/4" Balanced (Left and Right)
Miscellaneous
-
Connection TypeUSB 2.0 Bus-Powered
-
MIDI I/ODual 5-Pin Female DIN
Microphone Preamp
-
Total Harmonic DistortionTHD+N (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
-
Signal To Noise Ratio(Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
-
Common Mode Rejection Ratio(1 kHz, 55 dB Gain) > 45 dB
-
Gain Control Range(± 1 dB) 0 dB to 35 dB
-
Microphone Preamp Maximum Input Level(Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
-
Phantom Power(±2 VDC) +48 VDC
-
Frequency Response(±3.0 dB) 20 Hz to 20 kHz
-
Microphone Preamp Input Impedance(Balanced) 1200Ω
-
Main And Line Outputs Output Impedance51Ω
-
Headphone Outputs Maximum Output60 mW/Channel @ 60Ω Load
-
Frequency Response(±1.0 dB) 20 Hz to 30 kHz
-
Digital Audio Dynamic RangeADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
-
Digital Audio Bit Depth 24
-
Supported Sample Rates44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
